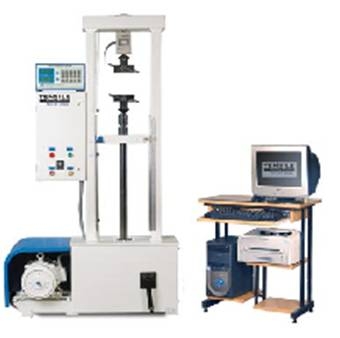

This computerized version help in apt functioning in various industrial applications:
Latest Windows based, Users friendly, Accurate, Menu driven software
Fully automatic, on screen calculations based on the delivered data
Automatic Data capture, storage & graphic display
Recording, storage & retrieval of results & details
Build in facility for printing of test results and the graph
Load measurement by load cell
Over Load & Over travel safety
On line display of Load, Elongation & Graph
Tare load & reset elongation facilities available
Selectable units like N, kN, kgf, lbf, inch, mm, etc
Fully automatic on screen calculations like UTS, YS, Proof stress, etc
Electronic Extensometer (Optional) is available for proof stress evaluation
It is possible to use a number of load cells, say two or three, to cover much wider range of load, to suit the application. Cost of one load cell is included in the price, but additional load cell will be at extra cost
Standard load resolution is with 10,000 counts. Finer resolution (Optional) with 20,000 counts can also be offered at extra cost. Standard displacement resolution is 0.1 mm
Types of tests, testing materials, grips, attachments, fixtures, straining speed as like Analogue version, Model : TKG
Various Models – Maximum Capacity from 200 N to 50 kN
Loading accuracy well within ±1%, conforms to IS:1828 / BS:1610
