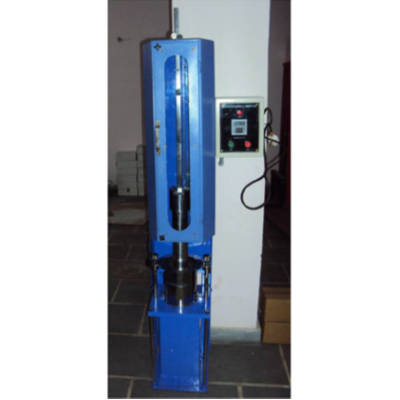

AUTOMATIC MECHANICAL SOIL COMPACTOR

  Home  |    Products  |   Building and construction equipments
AUTOMATIC MECHANICAL SOIL COMPACTOR

AUTOMATIC MECHANICAL SOIL COMPACTOR

Code: SLE-STE-138   Make: SURYA   Origin: INDIA

Use: For compacting soils, for proctor test, CBR tests, Consolidation tests

Back  Send Inquiry

Description

Use: For compacting soils, for proctor test, CBR tests, Consolidation tests

Standard:

BS 1377-4, 1990, EN 1997-2, 1924, 13286-2, 47, ASTM D558, 560, 698, 1557, AASHTO T99, T134, 136, 180, 193

Specifications:

  • 102mm internal diameter(ID) moulds,
  • 2.5kg weight with 305mm drop,
  • 152mm ID moulds
  • 4.5kg weight with 457mm drop.
  • Standard 51mm hammer.
  • Automatically counts the number of hammer blows and shuts off when a preset number is reached.
  • The sample mould indexes to a new position with each count to assure uniform compaction.
  • Accessories(same standards as above)
  • 51mm round,2.5kg hammer,
  • Pie-faced hammer for use with 152mm moulds,
  • Surcharge weight to increase total hammer weight to 4.5kg (10lbs). 102mm (4in) and 152mm  (6in) standard compaction moulds,
  • Digital automatic counter with start/stop switching.
  • Compaction mould
  • Split type moulds separate longitudinally for easy sample removal.
  • Moulds of 102mm internal Diam. 116.4mm (4.584in) in height with detachable extension collar and base plate, and are plated for rust resistance.
  • 12in Steel Straightedge for trimming compacted soil
