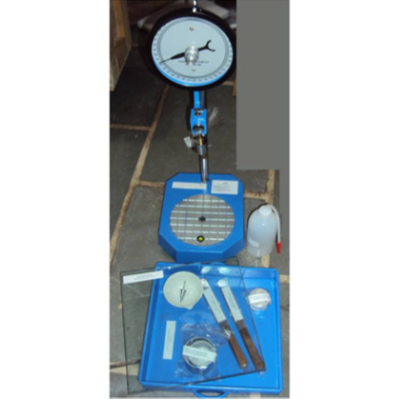

CONE PENETROMETER (BS 1377, 1924-2, EN DD ENV 1997-2)

  Home  |    Products  |   Building and construction equipments
CONE PENETROMETER (BS 1377, 1924-2, EN DD ENV 1997-2)

CONE PENETROMETER (BS 1377, 1924-2, EN DD ENV 1997-2)

Code: SLE-CCT-37M   Make: SURYA   Origin: INDIA

Use: Performing liquid limit and other penetration tests; for testing a wide variety of materials such as grease, petroleum, bitumen, tar, asphalt, wax, polish, food stuffs, rubber, cement, pharmaceutical creams and soils.

Back  Send Inquiry

Description

Use: Performing liquid limit and other penetration tests; for testing a wide variety of materials such as grease, petroleum, bitumen, tar, asphalt, wax, polish, food stuffs, rubber, cement, pharmaceutical creams and soils


Standard:
BS 1377, 1924-2, EN DD ENV 1997-2
Specifications:

  • Dial Indicator: 150 mm diameter graduated in 400 x 0.1 mm divisions. Indicator incorporates a friction/gear system.
  • Height: Adjustable using rapid integral clamping mechanism.
  • Cone Release. Manual.
  • Cone. 1 x 30°, 35 mm test cone included.
  • Base. Cast aluminium with adjustable levelling feet.
  • Weight. Net 6 kg (13.25 lbs.).
  • Test Gauge for checking the condition of the cone point.
  • Penetration test cup: 55 mm diam. x 40 mm deep with rim parallel to the flat base.
  • Penetration test cone: Stainless steel; 35 mm long with smooth surface at an angle of 30°.
  • Accessories (same standards as above)
  • Evaporating/mixing dish,
  • Ground glass plate 305x305x10mm (12x12x3/8in) with seamed edges,
  • 24 aluminium containers 51x22mm (2in dia. x 0.9in H) with snug-fitting lids,
  • Wash pan
  • Wooden-handled spatula with stainless steel blade 19x102mm, WxL,
  • 250ml polyethylene squeeze wash bottle
