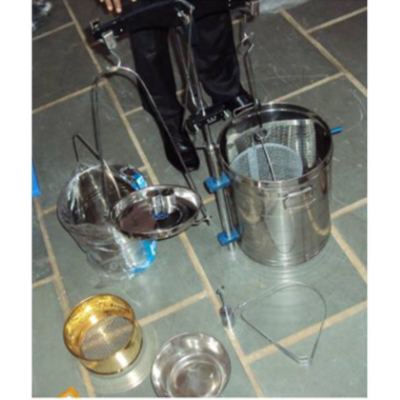

Uses: Specific gravity, Absorption of fine and coarse aggregates, Silt determination Constituents of fresh concrete
Uses: Specific gravity, Absorption of fine and coarse aggregates, Silt determination Constituents of fresh concrete
Standards:
• ASTM C127, C128; AASHTO T84, T85
Specifications:
• Balance of 5 kg capacity.
• Containers: Immersion and soaking buckets with handles; water overflow container.
• Density Basket: with dimensions 203 mm diameter x 203 mm deep, constructed of reinforced no. 8 wire mesh).
• Weights: 2,000 g brass weight set and 1 kg slotted types.
• Scoops: set of three for weighing
• Sieves: 203 mm (8") diam.; one no.4 mesh x 4" (102 mm) h.; one no.100 mesh, standard height with no.100 mesh side openings to AASHTO M 92 standards
• Case: Galvanized steel construction with cover and carrying handles.
Weight: 33kg
