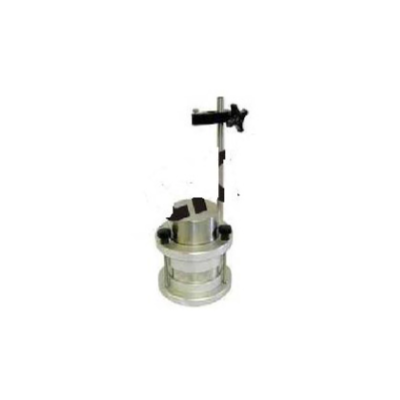

EXPANSION INDEX TEST APPARATUS

Code: SLE-STE-142 Make: SURYA Origin: INDIA

Use: determining the expansion index of soils.

Use: determining the expansion index of soils.

Standard:
ASTM D-2435, D-4546; AASHTO T-216.

Specifications:

Construction The unit consists of a cast aluminium base and collar, stainless steel specimen ring
Base and Collar. Cast aluminium construction; brass hold-down rods.
Specimen Ring. Stainless steel; 101.6 x 25.4 mm (4" internal diam. x 1" h.).
Porous Stones. 101.4 x 12.7 mm (4" diam. x 1/2" thick).
Loading Weight. Brass; 5.7 kg (12.6 lbs.).
Dial Indicator: 0.3" range x 0.0001" graduations.
8 mm range x 0.002 mm graduations.
Test Duration. 24 hours or less on cured sample.
Dimensions. 152 x 279 mm (6" diam. x 11" h.).
Weight. Net 8.2 kg (18 lbs.)
