Use: Measuring in-situ soil bearing capacity.
Use: Measuring in-situ soil bearing capacity.
Standard:
• BS 1377, 1924, EN 13286-47, ASTM D1883, AASHTO T193
• Equipment parts to the above standards

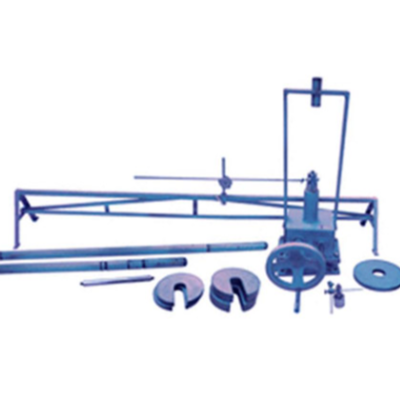

• Field CBR Jack 50kN capacity; weight 8.5 kg; total height: 254mm
• 1 Ball Seating Attachment
• 1 Proving Ring, 10 kN capacity.
• 1 Proving Ring, 28 kN capacity.
• 1 Proving Ring, 50kN. capacity
• 1 Field Penetration Piston 50 mm dia. threaded at the upper end
• Extension Rod machined from steel tubing, consisting of 2 lengths 5 cm. 2 lengths 10 cm., 1 length 30 cm.,1 length 50 cm., and 1 length 100 cm., used as spacers between the proving ring and penetration piston.
• 1 Bracket and Adapter.
• 1 Bridge Support.
• 1 Penetration Dial Indicator.
• 1 Circular 4.54 kg Surcharge Weight. 250 mm dia with 53 mm dia central hole,
• 1 Slotted (4.54 kg) Surcharge Weight. 215 mm to 250 mm dia with 53 mm dia slot
• 1 Slotted (9.07 kg) Surcharge Weight 215 mm to 250 mm dia with 53 dia slot
• Dial gauge support of seamless pipe construction, 30 cm high and 45 cm wide at the base, with a quick release screw type clamp capable of sliding and locking anywhere along 2 meter length of the bridge.
• Carrying case.
Accessories:
• Dial gauge 0.01mm x 25mm. (as per item S70)
• Proving ring calibration charts as per equipment standards above
