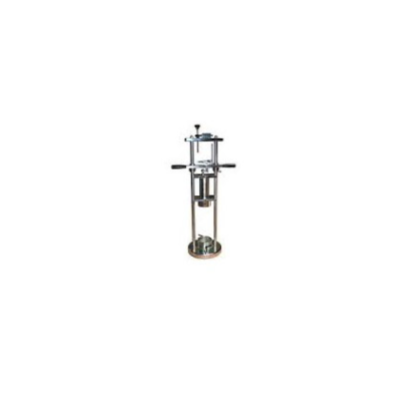

Use: tests Aggregate impact value and Resistance of aggregate to shock or impact
Standard:
• BS 812-112
Specifications:
• Made of plated steel against corrosion, safety locking bar, and built in counter
• Cylindrical Measure Machine steel, 75 mm diameter., 50 mm deep
• 2 Tamping Rod Galvanized steel, 3/ 8" (9.3mm) diameter, 8" (203mm) length
• Dimensions: 444x300x879 mm (lxwxh)
• Weight approx. 58 kg
Accessories:
• Sieve 1/ 2", Sieve 3/ 8", Sieve No. 8 and Pan & Cover to AASHTO M 92 standards
• Triple Beam Balance of 2610g capacity and sensitivity of 0.1g made of stainless steel
• Mixing Bowl made of stainless steel and of 255mm diameter
• Soft Brush
