Intended to test the measurement of the resistance to plastic flow of cylindrical specimens of bituminous paving mixture loaded on the lateral surface, for use with hot mixture containing asphalt or tar and aggregate up to 25.5 mm maximum size.
Intended to test the measurement of the resistance to plastic flow of cylindrical specimens of bituminous paving mixture loaded on the lateral surface, for use with hot mixture containing asphalt or tar and aggregate up to 25.5 mm maximum size.

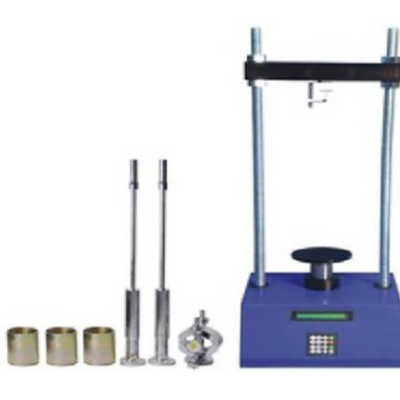

Comprises of:
Marshall Load Frame cap 100 KN with Vertical Clearance 1200 mm and Horizontal Clearance 500 mm and Pillar Diameter of 35 mm
Breaking head Stability Mould, With a dial gauge
Compaction Mould, Steel, cylindrical 3 Nos
Base Plate 3 Nos
Extension Collar 3 Nos
Compaction Pedestal, Manual operation. Comprising a steel plate capped on a Wooden post, A Mold Clamp is fitted to the top of the plate 1 Nos,
Compaction Hammer, For use with Compaction pedestal and mould weight 4.5 kg with a free fall of 457 mm. 2 Nos.
Load Transfer Bar 1 Nos
