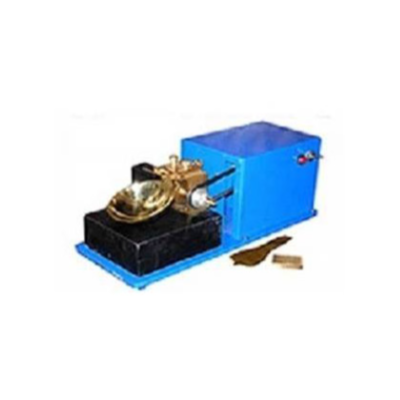

Use: Measuring liquid limit
Use: Measuring liquid limit
Standard:
ASTM D4318 –1/AASHTO T 89
Specifications:
Gear Motor: Attached to metal base; enclosed in housing with on-off switch.
Counter: Mechanical; records number of cup drops.
Cup. Spun brass; pin and slot mounting.
Base. Molded hard rubber.
Cam. Molded, self-lubricating plastic.
Housing. Aluminum; holds cup and drop adjustment parts.
Overall Dimensions. 216 x 381 x 191 mm. (8-1/2" w. x 15" d. x 7-1/2" h).
Weight: Net 6.6 kg (14-1/2 lbs.).
Power requirements 220v AC, 50 Hz
Grooving Tools
Replacement Parts
ASTM D4318-1Plastic Grooving Tools. Pkg. of 10.
Brass Cup. With mounting holes.
ASTM D4318 – 1 Slider and Pin Cup Holder
