Use: CBR test for determining bearing capacity of soils.
Use: CBR test for determining bearing capacity of soils
Standard:
ASTMD-1883,AASHTO T-193 and BS 1377
Specifications:

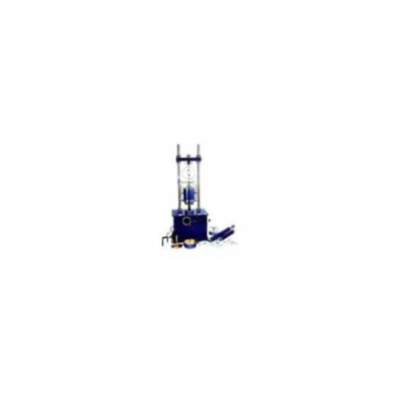

Consisting twin column frame and a motorized drive system.
Capacity: 50 kN.
Load Speeds: Selectable; 1.27 mm (0.5") or 1.0 mm.
Horizontal Clearance: 255 mm (10").
Vertical Clearance: 800 mm (31.5") maximum.
Platen size: 133 mm (5.24") diam.
Platen Travel: 105 mm (4.13").
Dimensions: 400 x 550 x 1,220 mm (15.75" w. x 21.65" d. x 48" h.).
Weight: Net 48 kg (106 lbs.).
Accessories (same standards as above)
Penetration Piston Assembly.
Proving Ring. 28 kN (6,000 lb.) capacity.
Proving Ring. 50 kN (capacity. 11,200 lb)
Penetration Dial Indicator. 25 mm range x 0.01 mm divisions.
Dial Indicator Holder.
