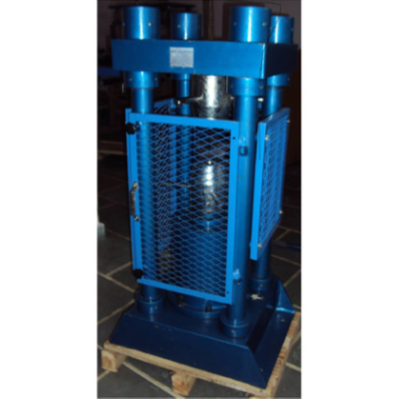

MOTORIZED COMPRESSION/TENSION MACHINE

Description

Use: For compression & Tension tests

machine for tensile test (500KN) and compression test (2000 KN)

- Max. tensile test load: 500 kn (0.01 kn divisions)

- Max. compression test load: 2000 kn (0.1 kn divisions)

- Piston stroke: 100 mm

- Span between the columns: 280 mm

- Manual regulation of the load/tensile rate with pacer

Includes:

- Tensile Grips (in 4 pieces) with interchangeable wedges:

     For round bars with diameters from 6 to 9 mm, from 10 to 15 mm, from 16 to 25 mm

     For flat bars max. width 50 mm, (thickness: 1 to 15 mm)

- Platens, spacing pieces and ball seating to test cylinders dia. 15x30 cm and 15-20 cm cubes.

- Grip holders, for specimens mm 300-350

- Lifting winch for ball seating

Oil bath joint.

-Load sensors: n.2 electric transducers.

- load measuring instrument: 2 electric transducers in conjunction with digital display unit

- Electronic instrument Display Unit:

• Function (data acquisition - processing - storage – display)
• 500,000 nominal resolution points
• Memory for test programs and results allows up to 340 tests to be stored
• 2 channels (standard)
• Compressive, flexural, tensile tests and calibration.
• Has a numerical keypad to facilitate data entry.
• Numbers are entered by touching a key rather than having to scroll a long list using arrow keys.
• Uses a 24 bit A/D converter for each input.
• Power supply is 12 V D.C. via external adaptor

Fitted with several ports:

• Two serial ports RS 232 (one of which may be conigured as RS 485).
• Ten  ON/OFF logic outputs
• Four ON/OFF logic inputs.
• 12 bit proportional output for connecting machines requiring a closed loop feedback system
• One input for uploading new software from a PC.

The user interface comprises a 16000 pixel graphic display.

The lower part is comprised of symbols indicating the functions attributed by the software to the 5 keys located beneath.

A numeric keypad enables data to be input in a practical, no-nonsense manner, while a further set of keys are dedicated to the most common operations.

Machine Dimensions: 900x500x1550 mm

Machine Weight: 700 kg

Machine Power: 220 V, 50 Hz, 1 ph, 1200 W

Accessories:

-Compression load cell 2000 KN capacity (EN 2) with factory calibration certificate.

 -Two Channel universal digital indicator for dynamometers and load cells.
