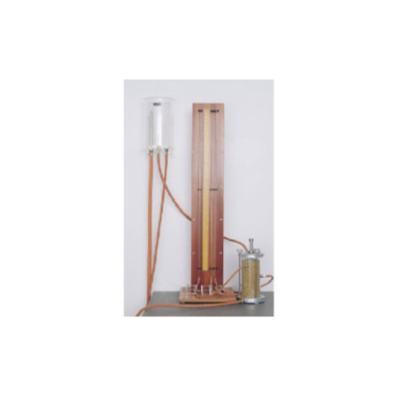

PERMEABILITY TEST SYSTEM

Code: SLE-STE-143 Make: SURYA Origin: INDIA

Use: Permeability Test System for efficient and accurate permeability testing of a wide range of construction materials

Constant Head Permeability Test

Use: Permeability Test System for efficient and accurate permeability testing of a wide range of construction materials
Permeability Cell:

Cell Diameter Ø 75 mm.
The (b) type permeability cell is specially designed for constant head tests on incoherent soil samples.
It has a central body with 3 outlets for 3 manometer tubes through which water is collected after seepage through the sample.
Inlet and drainage ducts are found in the metal base.
A movable stem enables stabilization of the upper surface of the sample.
Weight 3 Kg
Standpipe with three manometers tubes:
Comprises 3 glass tubes all of the same diameter, relevant graduated rods, taps and metal pedestal for bench mounting
Dimensions: 320x1450x500 mm
Weight: 15 g
Constant level tank:
Supplied with support for wall mounting, it comprises a transparent body, water supply ducts, discharge and flow valves.
Weight: 3 kg.
