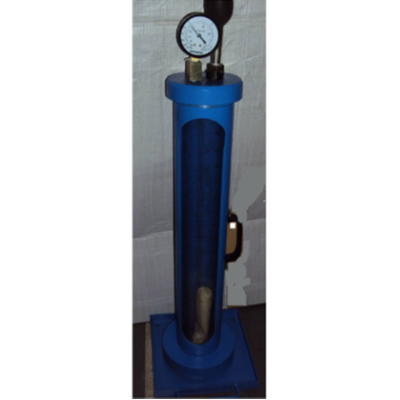

VOLU VESSEL DEVICE

VOLU VESSEL DEVICE

Code: SLE-STE-143   Make: SURYA   Origin: INDIA

Use: Used to determine the in-place density of compacted or firmly-bonded soils

Back  Send Inquiry

Description

Use: Used to determine the in-place density of compacted or firmly-bonded soils

Standard:
ASTM D2167; AASHTO T205 specifications

Specifications:

  • Graduated Cylinder. Heavy-duty plastic; dual graduated.
  • Balloons. Resilient latex.
  • Guard. Aluminium with integral carrying handle.
  • Guard Base. Aluminium; with fittings, outlets, valves and vent tube for balloon and actuator bulb.
  • Actuator Bulb. Double acting type for pressure or vacuum; fitted with adapter, quick coupler and valve assembly.
  • Density Plate. Aluminium with flanged sides; 229x229 x 19 mm).
  • Operating Liquid. Water.
  • Weight. Net 5.4 kg (12 lbs.).
  • Accessories (same standards as above)
  • Balloons in packs of ten. Aqua-Check for moisture determinations
  • In-Place Density Accessory Kit.
