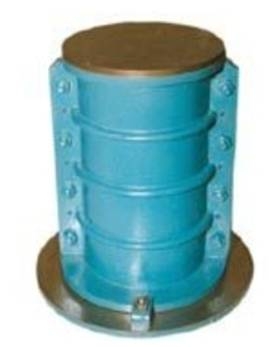

For testing concrete cylinders for compressive strength tests.
Specifications : The mould is split vertically into two parts. The mean internal diameter is within 0.2mm and height is within 1mm. The ends are machined to 0.05. The base plate and top plate are machined flat to 0.03mm.
· Mould, Cylinder, Cast iron, 15cm dia x 30cm height .
· Mould, Cylinder, Cast iron, 10cm dia x 20cm height .
· Mould, Cylinder, Cast iron, 30cm dia x 60cm height.
