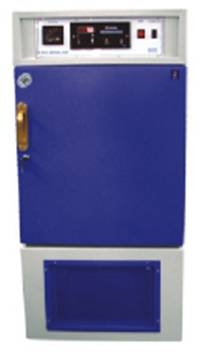

BOD INCUBATOR

Code: SLE-LAB-02(A)

Back Send Inquiry

Description

Capacity :112L

Interior (mm) : 455 x 610 x 410 (18”x24”x16)

Litter volume :4Cuft

Heater Wattage "W": 250 W

Shelves: 2

Double walled inside made of stainless steel and outer of mild steel duly powder coated. Two air circulation fans are provided for uniformity of temperature inside the chamber. Refrigeration is done by Kirlosker CFC free compressor. From 5˚C to 50˚C ±0.5˚C controlled by electronic digital controller cum indicator .Fitted with unbreakable acrylic inside door. To operate on 220?230 volts A.C supply

Refrigerated Insulation & Freezing in one unit.
Better mineral & Puf Insulated to keep the surface Temp of body comfortable & avoid Cooling loss.
Silent energy saving Kirloskar/ Tecumseh compressor, Designed to circulate uniform air throughout the chamber with better imported coil condenser copper coil, improved Temperature distribution
Polish 304 grade S. Steel interior corrosion resistant long life operation having adjustable shelves to make more space for different Height.
Kanthal A-1 tubular heater is fitted for better accuracy.
Safety Controller are provide with the Digital Temperature Controller Cum Indicator
Full features with Digital Temp. Controller Cum Indicator & Microprocessor Based PID Temperature Controller Cum Indicator with Voltmeter (Optional : Digital Voltmeter)
Choose among the model with window front glass door or inner Perspex / Acrylic sheet full view door to observe the Test Process inside the incubator as desired while keep Temp uninterrupted.
Angle Iron Frame at bottom with castor wheel for easy movement.
Fitted with 2 Nos. Fan (One for Cooling & One for Heating inside the chamber)

Applications :

Incubation for BOD & COD Determination, Storage for BOD Samples, General Incubation at 37°C Vaccine keeping, fermentation study stability Test.

Technical Description

CAPACITY / SIZES AVAILABLE

112/171/280 AN 336 LITERS
