Features :
Construction Details

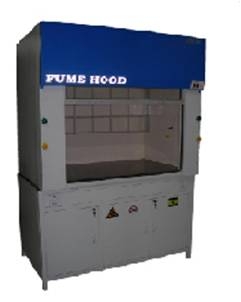

Our fume hoods are developed to be used as semi closed ventilated enclosures so as to protect the user from harmful and toxic fumes and vapors and to eliminate the possibility of accidental fire, which may be resulted due to the emission of inflammable gases during the course of a given experiment. Our fume hood is made up of All S.S 304 grade. The work table is made of stainless steel grade ss-304. The work bench is provided with a small sink made of stainless steel grade ss-304.. Our units ensure minimum illumination level of approx 800 lux on the work table. The unit is equipped very diligent heavy duty exhaust system, comprising of dynamically balanced centrifugal impeller with
high speed motor. Air Velocity: Our fume hood ensures that the optimum face velocity of 80 feet – 100 feet per minute is maintained with an accuracy of + 10 feet/minute with the sash in Complete open position. Pressure (Static) Our fume hoods are designed to minimize the loss of static pressure at a given baffle opening position. As per our standard procedures the average loss of static pressure at any given four points at ninty degree angle and 3 duct dia from the fume hood will not exceed 75 feet per minute at 0.25 inch, with full Sash opening and face velocity of 100 feet per minute.
Noise/Sound Levels:
Our fume hoods are designed to generate lower noise levels. The performance
of our fume hoods are rated better than the industry standards of 60 db, at
Approximately 15 cm distance from the sash.
Illumination Levels At work Space:
Our fume hood ensure that a minimum of 800 lux light is available on the work
table through the diffuser fluorescent light arrangement.
Exhaust Assembly:
Our fume hoods are provided with a very strong and high end exhaust system
Having a range of 500 – 1250 CFM (designed as per the size of the hood). The
exhaust assembly consists of a dynamically balanced centrifugal impellers
which are coupled with a heavy duty three phase motor of Crompton
Greaves/equivalent.
