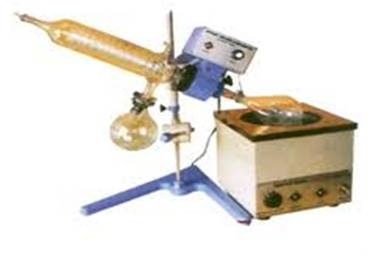

The apparatus consists of an evaporating flask by DC motor in heating water bath. Vacuum distillation of solvent at high and low temperature is achieved quickly and efficiently by use of a variable speed motor, which prevents foaming and bumping of the liquid (solvent) into the evaporating flask and also distillation under controlled atmosphere. The evaporation flask is pear shaped to give a large surface area of evaporation and is clamped to a glass duct, which goes through the drive unit and produced into condenser. The condenser is fitted with standard joint at the top and the bottom for receiver flask. The unit is fitted with quick action.
Rotation speed : 20- 140 rpm
Evaporating flasks : 800 ml
Condensing surface : 1200 cm2
Operating voltage : 230 V; 50 Hz
Power consumption: Max. 2000W
Optional:
(A)Water bath thermostatic OR Digital temp. controller
(B)Oil free vacuum pump
(C)Micro attachment5 set
NOTE:
{temperature range (water bath): Max. 100°C
Temperature Accuracy : ±1°C }- only available with Water Bath thermostat / Digital Model
