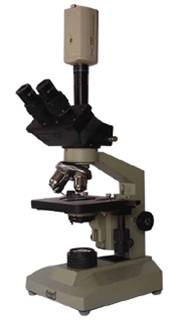

High resolution CCTV microscope system suitable for teaching, demonstration and group discussion in class rooms. Just attach TV set / monitor
Trinocular head: 45° inclined Trinocular head, 360° rotatable for comfort viewing, IPD adjustments, 55-75 mm
One eye piece tube diopter adjustment ring is standard feature, 2 position light sliding system; 1) 100%lights to binocular tubes & 2) 100% light to camera
Stage: 140×13 mm double layer ball bearing mounted guide ways co-axial stage with low position right hand drive for X-Y direction movement with graduation reading up to 0.1 mm
Focusing: coarse and fine focusing mechanism by separate knobs is designed for frequent use provides a smooth adjustment, coarse focus with upper limit stopper.
Condenser: extremely efficient for resolution and contrast control N.A 1.25 abbes design with iris diaphragm 1-25 mm and filter holder movable up & down on rack & pinion
Image format: by 1/3” CCD color sensor 480 TV line resolution, 1 Lux minimum illumination, S-video, R-video, USB 1.0 output connector
Illumination: built- in 6v t0 20 W halogen light with lamp diffuse screen & intensify regulator, Input 220V-230 AC 50- 60 Hz
Standard Accessories
CCD Camera & coupler, camera power supply, connecting cables, one spare bulb, blue filter, 2 rubber eye guard, dust cover, instruction/ working manual in English.
