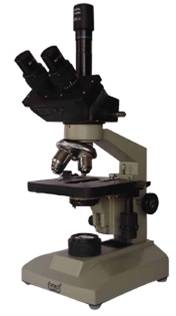

A high resolution digital camera microscope system suitable for teaching, demonstration of slides, group discussion in class room and recording of own made siding details. Microscope supplied DCE-2 USB 2.0 high resolution Digital Camera operates on Premium Processor computer system. Just attach to computer system.
Trinocular head: 45° inclined Trinocular head, 360° rotatable for comfort viewing, IPD adjustment 55-75 mm, one eyepiece tube diopter adjustment ring is standard feature. 2 position light sliding system; 1) 100% to binocular eyepiece & 2) 100 % camera
Nose piece: quadruple revolving nose- piece
Objectives: achromatic par focal 4x, 10x, 4x (S L), 100x oil (SL).
Eyepiece: WF 10x, anti fungal treated.
Stage: 140×130 mm double layer ball bearing mounted guide ways co-axial mechanical stage with low position right hand drive for X-Y direction movement with graduation reading up to 0.1 mm
Focusing: coarse and fine focusing mechanism by separate knobs is designed for frequent use provides a smooth adjustment, coarse focus with upper limit stopper.
Condenser: extremely efficient for resolution and contrast control N.A 1.25 abbe’s deign with iris diaphragm 1-25 mm and filter holding, movable up & down on rack & pinion.
Image format: best resolution 640 ×480 pixel Digital Camera USB 2.0 compatible.
Illumination: built- in 6v- 20 W halogen lamp light with lamp & intensity regulator , input 220-230 v 50-60 Hz
Standard Accessories
Digital camera, camera driver CD, one spare bulb, blue filter, 2 rubber eye guard, dust cover, instruction/working manual in English.
