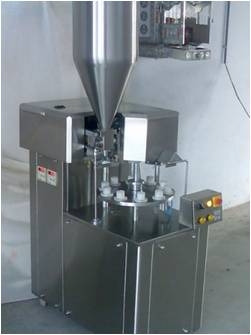

Adjustable filling pump and several optional attachments
Can handle tube diameters from 10 mm to 40 mm and lengths from 40 mm to 200 mm. ~ Automatic tube infeed with cassette loader.
Simultaneous accessibility of many tube holders in case of manual infeed.
Tube cleaning device for dust removal (particularly required for pharmaceutical and~ food products)
Adjustable filling pump with different volumes: - Ease in removal of pump components for cleaning and changeover. -Contact parts are corrosion resistant, - No-tube-no-fill device, - Blow off device to cut "Rat tail" of highly viscous products. - Photo-electric tube registration for automatic positioning of tube orientation. - Multiple folding stations for tube closure. - Code marking on the closure with digits and/or letters. -Transportation of filled tubes forward and backward.
Technical Description
Output, tubes per hour 2400-3600 depending upon tube size and product
Attendance 1 operator
Power consumption 1 KW
Floor space occupied 1.2 x 0.7 m
Height, including paste container 1.7 m; ( 5' - 7" )
