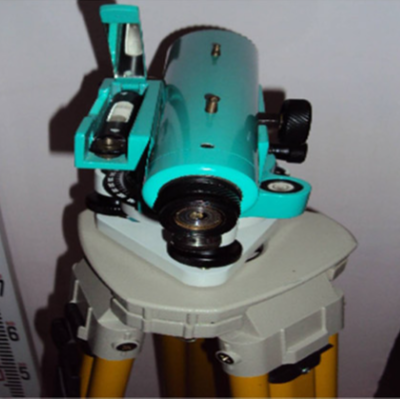

ENGINEER'S MULTI PURPOSE TILTING LEVEL

Description

Use: For general leveling

Type:                     Automatic
Image:                                  Erect
Objective Aperture:       36mm
Magnification:                  24X
Horizontal Circle:           360 ° / 1 ° graduation (Diameter 106 mm)
Horizontal fine motion screws:    Double-sided endless drive
Field of view :                       < 2.1 m at 100 m
Reticle:                   Cross hairs, with stadia lines
Stadia multiplication constant:    100
Stadia additive constant :    0
Sensitivity of circular bubble:  8 ’ / 2 mm
Mirror for circular level:    Plane mirror
Compensator:                   Automatic, Air damping
Compensator Range:       ± 15'
Compensator Accuracy:              ± 0.5"
Standard Deviation of 1 km double run:              ± 2.0mm
Minimum Focus :   < 1.0 m
Leveling Mechanism:  Foot screws
Dust and Water resistance: Conforms to IP54 (IEC60529)

Accessories

• Aluminum Tripod.
• Telescopic level staff.
• Cover & adjustment tools.
