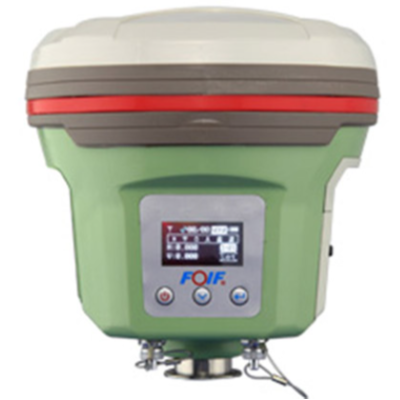

GPS RECEIVER

Code: SLE-A50 GNSS

Use: to obtain altitude and X-Y positions

Back Send Inquiry

Description

GPS RECEIVER SPECIFICATIONS:

36 satellites tracked simultaneously, 72 channels (GPS/GLONASS)

GPS tracking: L1, L2, L2C

GLONASS tracking: L1, L2

BeiDou tracking: B1, B2

Positioning rate: 20Hz, 5Hz

Receiver accuracy:

Static horizontal: 5 mm ± 0.5 ppm (rms)

Static vertical: 10 mm ± 0.5 ppm (rms)

Kinematic horizontal: 10 mm ± 1 ppm (rms)

Kinematic vertical: 20 mm ± 1 ppm (rms)

Interfaces:

Keyboard: On/Off and function key

LED status indicators: Position, battery, Bluetooth®, RTK receive, GSM receive, satellites tracked

LED mode indicators: Rover, base, static

Data recording: MicroSD card, int. mem. 256 MB

GSM/TCP/IP: Removable SIM card

Communication:

GSM/GPRS module: 800, 900, 1800, 1900 MHz, User exchangeable SIM card

Bluetooth: Device class II

TNC connector : GSM antenna

Communication ports: USB, serial & power

Power supply

Internal battery: Removable 2.5 Ah / 7.4 V

Operating time: 6 h in static / 4.5 h in rover mode

External power: 9 V to 18 V DC

Physical specifications

Dimensions: Height 94 mm, ø 188 mm

Weight: 1 kg incl. battery

Protection class: IP67 dust and waterproof

Humidity: 100%, condensing

Shock Withstands: 2 m drop onto hard surface

GPS receiver Supplied with internal GSM, 2x batteries, Charger, GSM antenna, USB cable, Pole holder for handheld, Measuring tape, Tribrach w/o plummet, Carrier with optical plummet, Connection screw for carrier, Quick guide and CD ROM.

CONTROLLER /LOGGER SPECIFICATIONS:

Operating System: Genuine Windows® Mobile

Microprocessor: Marvell PXA310 806MHz

Memory : 128MB MDDR

Storage : 256MB NAND Flash and 4GB iNAND*

SD Card Slot : SDIO and SDHC (up to 16GB SDHC memory card)

Display : 3.5” VGA (480 x 640 pixel)

Transflective sunlight readable display

Pressure sensitive touchscreen

Keypad : Soft input panel (SIP) on screen keyboard

Transcriber handwriting recognition

Optional numeric or PDA keypad

Communications : WLAN 802.11 b/g

Bluetooth (v2.0 +EDR Class 2)

Camera: 3 Megapixel auto-focus

Special Features: E-Compass; Altimeter

GPS Sensor: Chipset SiRF Star III

Specifications:

Receiver type: L1 (C/A)
Channels: 20 channel all-in-view tracking
Update rate: 1 Hz
Autonomous: 5 m
DGPS: 1~3 m
Cold start time: 45 sec average
Warm start time: 30 sec average
Hot start time: 1 sec average
Reacquisition: 0.1 sec average

Power:

Battery type: 3.72V, 5600 mAh; Li-Ion battery pack

I/O Interfaces:

SDIO / SDHC x 1
DC x 1
USB OTG x 1
RS232 x 1
Office docking port x 1
Speaker x 1
Camera x 1
Battery cover x 1
Stylus pen x 1

Ruggedness:

Water & dust resistance: IP67

Drop spec: 1.52 m (5 ft) drop on all faces, edges and corners on steel per MIL-STD-810G

Electrostatic discharge: +/- 15kVdc air discharge, +/- 8kVdc contact discharge

Tumble spec: 1,000 1.6 ft/0.5m tumbles (2,000 drops)

SOFTWARE SPECIFICATION

Includes MicroSurvey FieldGenius CD with software and installation license

Accessories included:

Telescopic Carbon Fibre and aluminium pole. Extends to 2.5m.

AC adaptor, USB cable, Protective film, Hand strap, Quick start guide, Battery & Sylus pen.
