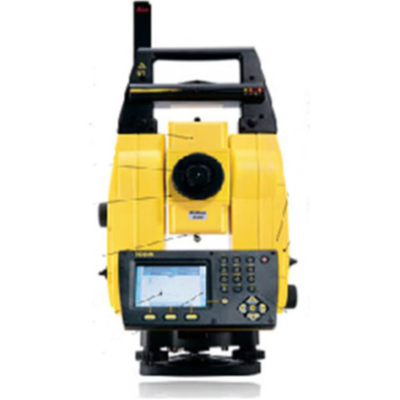

Instrument comes with a complete range of powerful applications:
Angle measurements:
Distance measurements:
Instrument includes:
EDM technology up to 600 m reflectorless
Coaxial visible laser beam
Keyboard: Full alphanumeric
Display: 3.5” Quarter-VGA Colour touch screen (320 x 240 pixel), 10 lines x 30 characters, illuminated.
Internal memory: 50,000 pts
Removable memory: USB memory stick
Interface: USB, serial RS232 & external power & Bluetooth® Device Class 1
Light alignment aid: Working range 5m to 150m /Position accuracy 5cm at 100m
Operating system Windows® Embedded CE
Plummet Type Laser point, adjustable brightness
Plummet Accuracy 1.5 mm at 1.5 m instrument height
Internal battery Removable Li-Ion 4.4 Ah / 7.4 V
Operating time 36 h (continous angle), 9 hours (continous distance measurement every 30s)
Protection class IP54 dust- and waterproof
Distance meter (Reflector Mode): Laser class 1 in accordance with IEC 60825-1 resp. EN 60825-1
Laser plummet: Laser class 2 in accordance with IEC 60825-1 resp. EN 60825-1
Including the following accessories:
Tribrach adaptor with optical plummet.
Circular prism with holder and Telescopic pole.
Target plate and Reflective tape.
Aluminum Tripod.
